Skrutkový kompresor APS 7.5 IVR Combi Dry X G2 10 bar 7.5 KM/5.5 kW 290-790 l/min 200 l
Vypredané
- Potrebujete poradiť? Kontaktujte nás!
- Vďaka našim znalostiam máte najlepší produkt.
- Doručenie za 2-3 dni
- Viac než 65 rokov skúseností na európskom trhu!
Detaily produktu
| SKU | 369957-IVR-G2 |
|---|---|
| EAN 13 | 8712418428490 |
| Jednotky na produkt (ks) | 1 |
| Hmotnosť (kg) | 310 kg |
| Dĺžka (mm) | 1 450 mm1,45 m |
| Šírka (mm) | 700 mm7 dm |
| Výška (mm) | 1 474 mm1,474 m |
| Pohon | Direct driven 1:1 |
| Spustenie | Inverter |
| Typ motora | PM |
| Výkon motora (hp/kW) | 7.5 HP / 5.5 kW |
| Trieda účinnosti motora | IE4 |
| Etapy | 1 |
| Premenlivá rýchlosť (IVR) | Áno |
| Rýchlosť čerpadla (rpm) | 1100-1960 |
| Ovládací panel | AirVision One |
| Dostupné jazyky | Dutch, Polish, German, French, Spanish, English, Russian |
| Vzduchová nádrž | Áno |
| Kapacita vzduchovej nádrže (l) | 200 |
| Galvanizovaná nádrž | Nie |
| Sušička | Yes |
|---|---|
| Objem chladiaceho vzduchu (m³/h) | 3 000 m³/h50 m³/min |
| Pracovné zaťaženie (práca/odpočinok %) | 100/0 |
| Maximálny tlak (bar) | 10 |
| Tlak rezu (bar) | 6 bar |
| Voľný prísun vzduchu pri 7 baroch (l/min) | 790 L/m1,317 L/h |
| Voľný prísun vzduchu pri 8 baroch (l/min) | 760 L/m1,267 L/h |
| Voľný prísun vzduchu pri 9,5 baroch (l/min) | 690 L/m1,15 L/h |
| Minimálna voľná dodávka vzduchu (l/min) | 290 L/m1,74 kL/s |
| Minimálna voľná dodávka vzduchu (m³/h) | 17,4 m³/h4,833 dm³/s |
| Maximálna voľná dodávka vzduchu (l/min) | 790 L/m1,317 L/h |
| Maximálna voľná dodávka vzduchu (m³/h) | 47,4 m³/h2,194 L/m |
| Úroveň hluku dB(A) (0 m) | 63 |
| Úroveň hluku dB(A) (4 m) | 43 |
| Hlavné pripojenie vzduchu (") | 3/4 |
| Bezolejové | Nie |
| Kapacita oleja (l) | 6 |
| Typ zásuvky | EU |
| Napätie (V) | 400 V / 50 Hz / 3 Ph |
Odporúčaný produkt
Popis produktu

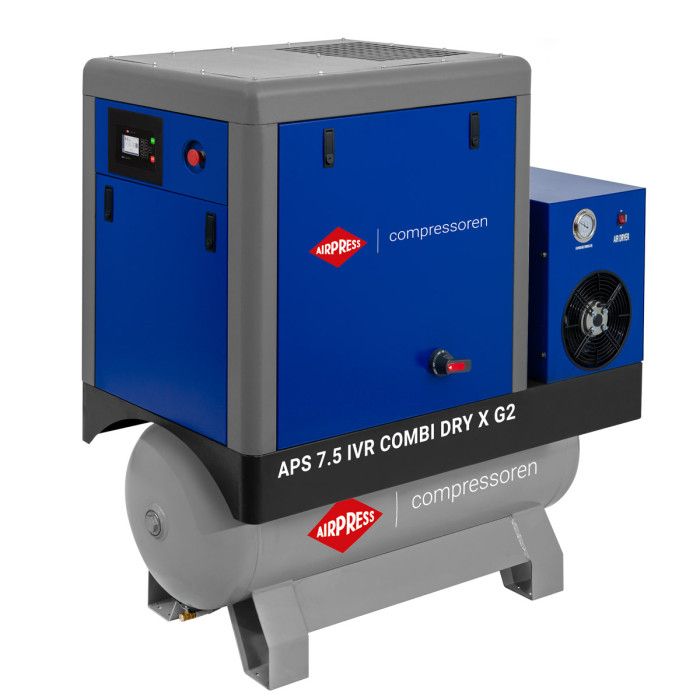

The APS 7.5 IVR Combidry X is a 5.5 kW direct driven screw compressor with variable speed and a yield of 170 to 760 liters per minute. This makes this machine unique and very versatile, especially for small air users who often still use a piston compressor. A permanent magnet synchronous motor makes the machine even more economical, especially in the low revs, so that the efficiency is significantly higher than with an asynchronous motor. Due to the compact design, this machine takes up little space, but it does have a 200-liter compressed air boiler and a cooling dryer. The direct drive ensures a 1 on 1 transfer from the electric motor to the screw block, so that no losses occur. All parameters can be read and adjusted in the menu of the very comprehensive but well-arranged controller which is equipped with a full color touchscreen. This allows the machine to be adjusted per situation for maximum efficiency. The service interval of 3,000 hours also ensures lower maintenance costs. This machine is very suitable for small companies that have variable air take-off but where a silent compressor with dry compressed air is required.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
